Choosing a precise auto body measuring system is essential for diagnosing frame damage and guiding repairs. The right 2D measuring setup helps shops and DIY enthusiasts measure wheelbases, door alignments, and chassis deformation with repeatable accuracy. The following picks are top-rated, aviation-aluminum construction tools designed for professional auto body work, offering about ±1 mm precision and portable, user-friendly features. This guide highlights five strong options and provides a practical buying guide to help you compare capabilities, durability, and value.
| Product | Brand | Key Benefit |
|---|---|---|
| ECUTEE Universal 2D Measuring System | ECUTEE | Compact, accurate with aluminum box |
| 2D Measuring System — ZAWAYINE | ZAWAYINE | Professional-grade precision with case |
| 2D Measuring System — Kaponbon | Kaponbon | Complete set for versatile measurements |
| AYAWNGJ 2D Measuring System | AYAWNGJ | Sturdy aviation aluminum construction |
| HinLIaDa 2D Measuring System | HinLIaDa | High precision with durable build |
ECUTEE Universal 2D Measuring System
Designed for car body measurement with an aluminum box and compact footprint, this 2D system covers X, Y, and Z axes for a broad range of measurements. It advertises a measurement error under 1 mm, making it suitable for frame alignment tasks and body repairs. The aluminum alloy construction emphasizes strength while keeping weight manageable for solo operation. Its economical design makes it a solid starter tool for workshops and independent technicians alike.
2D Measuring System — ZAWAYINE
This professional-grade 2D measuring ruler is built from aviation aluminum with an electrophoresis finish to resist wear and corrosion. It functions as a tram gauge and offers a wide measurement range in X, Y, and Z axes. A complete kit with three scales, probes, and a carrying case ensures that technicians can start measuring right away without buying extras. The precision target is within ±1 mm, supporting accurate repairs on vehicle frames and body parts.
Kaponbon 2D Measuring System
Designed for accident-vehicle repairs, this measurement kit emphasizes precision and ease of use. It includes multiple scales and probes, with a protective carrying case to keep accessories organized. The tool is described as not damaging the car body, making it suitable for sensitive measurements during frame evaluation and repair planning, while maintaining ±1 mm accuracy.
AYAWNGJ 2D Measuring System
With aviation aluminum construction and an electrophoresis finish, this model emphasizes durability and corrosion resistance. It is positioned as a professional tool for high-precision auto body measurement, designed to minimize measurement errors and provide reliable data for frame repair tasks. The kit emphasizes a straightforward setup so a single operator can perform measurements efficiently.
RudiUsoy 2D Measuring System
This model offers a wide X range (200 mm to 2250 mm) along with extended Y and Z options, enabling flexible measurements across vehicle frames. It stresses high precision and aluminum alloy construction. The kit includes multiple measurement scales and probes, and the product highlights its suitability for both construction and machinery maintenance contexts where exact data matters for diagnostics and repairs.

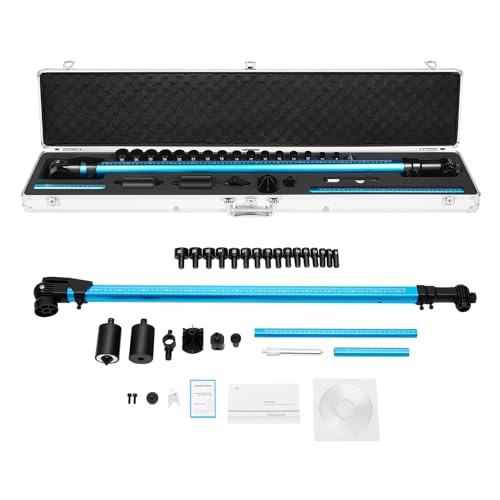

GSHIOIO Universal 2D Measuring System
GSHIOIO combines aviation aluminum construction with a robust electrophoresis finish for long-lasting wear resistance. The system is marketed toward auto body repair professionals who require reliable measurements during frame repair. A high-precision standard is stated, with a focus on minimizing measurement deviations to support accurate alignment and evaluation tasks.
Ynomdusa 2D High Precision Measuring System
This aspirational option emphasizes high precision with an inclusive kit that includes three measuring scales and various probes. The design aims to balance portability with measurement accuracy, allowing users to perform measurements efficiently in diverse workshop environments. The tool is positioned as suitable for car repair, construction, and machinery maintenance tasks requiring dependable data.
Buying Guide: Key Purchase Considerations
- Accuracy and tolerances: Look for systems advertising ±1 mm precision or better. Consider whether the product’s claimed accuracy fits your repair standards and the types of measurements you perform most often.
- Materials and durability: Aviation aluminum construction and protective finishes (electrophoresis) improve wear resistance and longevity in a workshop environment with dust and vibrations.
- Measurement range and axes: Ensure the X, Y, and Z axes cover the typical vehicle frames you work on. Wide X ranges are common for wheelbase and longitudinal measurements, while Y and Z support height and deformation checks.
- Completeness of kit: A full set of scales, probes, a carrying case, and a user manual or instructional videos reduces the need for additional purchases and speeds up setup.
- Portability and ease of use: A lightweight, modular system with simple assembly helps a single operator run measurements without heavy lifting or complex adjustments.
- Compatibility with your workflow: Consider if the system is primarily a 2D tram gauge or if it can support optional 3D measurements via adapters, broadening its usefulness.
- Support and documentation: CDs, manuals, and instructional videos contribute to quicker onboarding and consistent technique across operators.
Comparison At a Glance
- Best for compact setups: ECUTEE Universal 2D Measuring System offers a small footprint and strong basic accuracy, ideal for tight spaces.
- Best full kit: ZAWAYINE and Kaponbon emphasize complete accessory sets and ready-to-measure out of the box, reducing setup time.
- Best durability: AYAWNGJ and GSHIOIO highlight aviation aluminum construction with corrosion resistance for long-term reliability.
- Best value for versatility: RudiUsoy and Ynomdusa provide broad measurement ranges with multiple probes, suitable for diverse shop needs.
Additional Considerations and Use Cases
In professional settings, the choice may hinge on the balance between portability and measurement capability. For small shops performing frequent wheelbase and door alignment checks, a compact, accurate system with a solid case is advantageous. Larger repair facilities that require extensive probing and flexibility may benefit from a full kit with multiple scales and accessories. Regardless of the model, consistent calibration and a clear maintenance routine help preserve accuracy over time and reduce diagnostic uncertainties.
