Answering the common buyer question: which lower unit rebuild kit best fits your trolling motor or outboard’s diameter and voltage, and why. This guide highlights five top kits designed to restore seal integrity and brush performance. It helps buyers choose by diameter compatibility, voltage needs, and installation considerations. Best for DIY enthusiasts, professional technicians, and anyone maintaining Minn Kota or similar lower units.
| Product | ||
|---|---|---|
| Ciuouient 4in Brush & Seal Lower Unit Rebuild Kit | 4″ diameter; Fits 80-101 lb thrust Minn Kota models | Best for larger 4″ lower units; 80-101 lb thrust systems |
| Ciuouient 3-1/4″ Brush & Seal Lower Unit Rebuild Kit | 3.25″ diameter; 12V trolling motors | Best for smaller 3.25″ lower units; 12V systems |
| A.A Lower Unit Gearcase Seal Kit Replacement for Johnson E-Tec | Noted for specific Johnson E-Tec compatibility | Best for Johnson E-Tec 75-250 HP engines |
| 3.25″ Lower Unit Rebuild Kit 12V – Topsun | 3.25″ diameter; 12V trolling motors | Best budget-friendly 3.25″ option for 12V systems |
| Fits Minn Kota 12V 24V Trolling Motor 3.625″ Lower Unit | 3.625″ diameter; 12V or 24V systems | Best for mid-size trolling motor lower units; dual voltage |
Ciuouient 4in Brush & Seal Lower Unit Rebuild Kit
The kit covers 4″ diameter lower units and is compatible with Minn Kota Ulterra, Ultrex, Terrova, Fortrex, Maxxum, PowerDrive, Traxxis, and Riptide models in the 74-101 lb thrust range, plus some 1/2 HP electric outboards. It includes a full seal kit, brushes, springs, bolts, spacers, washers, an armature bearing, thrust spacers, and related hardware. Best for restoring seal integrity and brush contact on mid-to-large thrust trolling motors. Choose this if your lower unit is 4″ in diameter and you need a complete rebuild kit with multiple component parts. Caution: verify exact part numbers and compatibility with your model before purchase.
Ciuouient 3-1/4″ Brush & Seal Lower Unit Rebuild Kit
This kit targets most 3.25″ diameter lower units and is designed for 12V systems. It includes a seal kit, brushes, brush springs, brush bolts, an armature bearing, a nylon washer, steel washer, and an E-clip. Best for precise fit on smaller trolling motor lower units. Choose this if your unit measures around 3.25″ and you want a complete brush-and-seal refresh. Caution: ensure the part numbers match your vessel’s model to avoid mismatches.
A.A Lower Unit Gearcase Seal Kit Replacement for Johnson E-Tec
This kit is designed for Johnson E-Tec engines in the 75-250 HP range and includes shift housing gasket, seals, screws, magnetic drain screw, O-rings, impeller gasket, and washers. Best for Johnson E-Tec users needing a comprehensive seal kit for older or rebuilt gearcases. Pick this if you specifically own a Johnson E-Tec engine and need a replacement seal kit. Limitation: compatibility is focused on Johnson E-Tec applications; verify your model number.

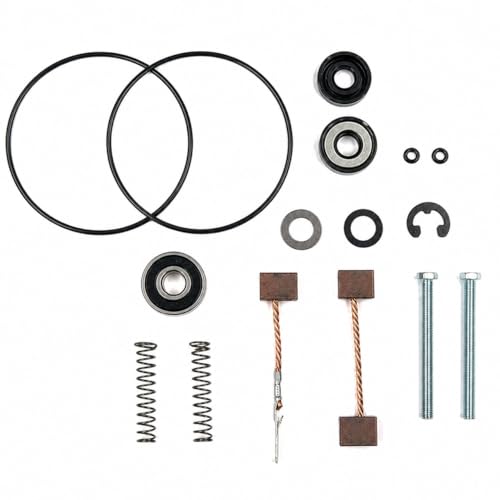

3.25″ Lower Unit Rebuild Kit 12V – Topsun
Designed for 3.25″ diameter lower units, this Topsun kit includes all essential components for a 12V trolling motor rebuild. It emphasizes durable brushes, springs, bolts, washers, and bearings for reliable operation. Best for budget-conscious buyers needing a complete 3.25″ rebuild kit for 12V trolling motors. Choose this if your lower unit is 3.25″ and you want a straightforward kit with all necessary parts. Caution: confirm that the kit’s part numbers align with your specific model before purchasing.
Fits Minn Kota 12V 24V Trolling Motor 3.625″ Lower Unit
This kit targets 3.625″ lower units and supports both 12V and 24V trolling motors. It includes seals, bearings, brushes, springs, screws, and gaskets for a thorough maintenance. Best for mid-size trolling motors with dual-voltage capability. Choose this if your unit is around 3.625″ and you need a versatile kit. Limitation: verify exact compatibility with your motor’s model and voltage to ensure proper fit.
Lower Unit Brush and Seal Rebuild Kit 3.625 Inch Diameter
This universal service kit is designed for most trolling motor lower units with a 3.625 inch diameter, compatible with 12V and 24V configurations. It combines seals, brushes, springs, hardware, washers, bearing, and retaining clip components. Best for buyers who want a complete internal service set in one package. Choose this if your diameter is 3.625″ and you want a ready-to-assemble kit. Caution: confirm exact part numbers and kit contents align with your model before buying.
Buying Guide
What should you check before buying a lower unit rebuild kit?
- Diameter match: Lower units commonly come in 3.25″, 3.625″, and 4″. Confirm your unit’s diameter to choose the correct kit.
- Voltage compatibility: Trolling motors use 12V or 24V; some kits support both. Ensure the kit matches your system voltage.
- Model compatibility: Some kits target specific brands or models (e.g., Minn Kota, Johnson/Evinrude E-Tec). Verify part numbers and engine compatibility.
- Contents: A full kit should include seals, brushes, springs, bolts, spacers, washers, bearings, and retaining clips. Inspect the list to ensure you have the necessary components for a complete rebuild.
- Installation notes: Look for kits that document which parts are included and provide assembly references or part numbers to avoid mismatches.
Practical comparison questions
- Which kit is best for a 4″ lower unit? The Ciuouient 4in kit is specifically designed for 4″ diameter units in higher thrust Minn Kota models.
- What if my lower unit is 3.25″? The Topsun or the Ciuouient 3-1/4″ kit fits most 3.25″ units; verify the exact model compatibility before purchasing.
- Do I need a dual-voltage kit? If your trolling motor can operate on both 12V and 24V, a kit that lists dual-voltage compatibility is advantageous.
- Is a Johnson E-Tec specific kit required? If you own a Johnson E-Tec engine, the A.A kit targets that family; for other brands, choose a kit matching your engine.
- Are these kits universal? Some are marketed as universal for common diameters, but always verify diameter, voltage, and model compatibility to avoid fit issues.
FAQ
- Q: Do these kits include all necessary o-rings and gaskets?
A: Many kits include a comprehensive set, but verify the exact contents listed in each product description. - Q: Can I install a lower unit rebuild kit myself?
A: Yes, for those with basic mechanical skills and proper tools, but follow the manufacturer’s instructions to ensure proper seating and seal integrity. - Q: How do I determine my lower unit diameter?
A: Measure the outer diameter of the lower unit’s shaft area or consult your motor’s service manual for diameter specifications. - Q: Will using a non-Minn Kota kit damage my trolling motor?
A: Using a kit compatible with your unit’s diameter and voltage is essential; mismatched parts can cause improper sealing or brush wear. - Q: Do these kits come with warranties?
A: Warranty details vary by seller; review the product page for any warranty statements or return policies before purchase.
