Choosing the right oil pan is crucial when upgrading an LS engine for turbo applications. This guide reviews top LS oil pans with turbo drain capabilities and related drain adapters, helping you balance clearance, oil capacity, and compatibility with classic GM bodies. The selections focus on reliability, fitment for LS swaps, and ease of installation in various V8 platforms.
The following quick-reference table summarizes the five highlighted products, their brands, and core features to help you compare at a glance.
| Product | Brand | Key Feature | Typical Fitment | Notes |
|---|---|---|---|---|
| ICT Billet LS Truck Turbo Oil Drain Pan Adapter | ICT Billet | -10AN drain port | LS trucks and LS swaps with drain needs | Premium billet adapter; tech-focused |
| ICT Billet LS Gen 3 Turbo Oil Drain Return | ICT Billet | -10AN drain return | Gen III LS engines; turbo setups | Front timing cover mounted drain |
| ICT Billet LS Twin Turbo Dual 90 Degree 1/8″ NPT Plate | ICT Billet | Two 1/8″ NPT ports for feeds/sensors | LS twin-turbo builds with oil feed routing | Versatile feed plate for turbo systems |
| Hypertune LS Swap Retrofit Aluminum Oil Pan Kit | Hypertune | Aluminum, full-length windage tray | 55-87 GM rear-sump applications | Low profile; lightweight with heat dissipation |
| labwork 302-1 Aluminum Oil Pan Kit | labwork | LS swap-friendly, 5.5 qt sump | 1955-1987 GM muscle/classic cars | Designed for LS Gen III/IV swaps |
Note: Each product page includes specific mounting requirements and compatibility notes. Verify your engine model, vehicle body kit, and any needed gaskets or pickups before ordering.
ICT Billet LS Twin Turbo Oil Feed Plate
The ICT Billet plate provides two 1/8-2″NPT ports to run turbo oil feed lines, with a design that seals the oil port in the pan above the filter. It supports sensors and turbo feeds, and is compatible with LS pans except some front-sump and dry-sump configurations. Crafted in the USA from aerospace-grade billet aluminum, this plate is intended for clean, reliable oil routing in high-boost builds.
ICT Billet LS Truck Turbo Oil Drain Pan Adapter
This adapter provides a -10AN oil drain line connection for LS truck and swap applications. It’s designed to work with compatible low-profile pans and allows proper drainage from turbo setups. The adapter is machined in the USA from billet aluminum, offering precise tolerances and durability for high-boost environments.
ICT Billet Gen 3 Turbo Oil Drain Return
Designed for Gen III GM LS engines, this front timing chain cover drain offers an internally welded AN drain fitting. It is tailored for truck or LS3 Camaro cranks and supports a robust turbo drain return path. Built to withstand oil temps and boost pressures common in turbo LS builds, it emphasizes reliability and straightforward installation.
Hypertune LS Swap Retrofit Aluminum Oil Pan Kit
This full-length windage-tray-equipped oil pan is designed to fit GM rear-wheel-drive swaps, providing maximum crank clearance and a lightweight alloy build. Features emphasize heat dissipation, corrosion resistance, and rapid heat dispersion to help maintain oil integrity under boost. Maximum crankshaft stroke supported is 4.25 inches, with a 5.5-quart sump capacity and total capacity near 6 quarts when paired with a standard stock filter.
labwork 302-1 Aluminum Oil Pan Kit
The labwork 302-1 is an aluminum LS swap oil pan designed for 1955-1987 GM muscle cars and trucks. It supports LS Gen III/IV V8s and offers a sump capacity around 5.5 quarts, with total capacity near 6 quarts. The kit aims to improve oil level accuracy, reduce overheating, and lower oil consumption, contributing to more stable engine performance in classic body builds.

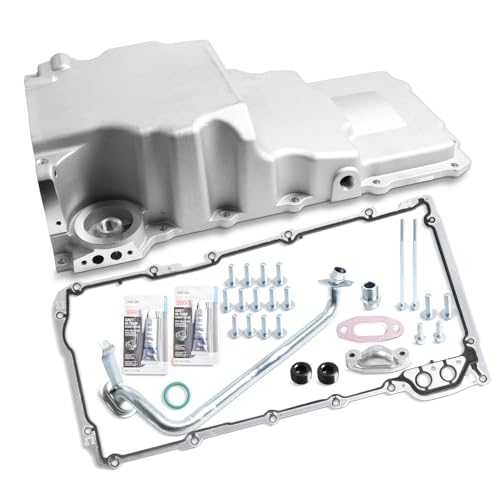

MDSAFM LS Swap Oil Pan Kit
The MDSAFM kit covers LS1/LS2/LS3/LS6/LSX engines across 4.8L to 6.2L, designed for classic GM A/F-body swaps and various GM platforms. It includes a complete pan assembly with gasket, pickup, and related hardware. The kit emphasizes compatibility with a broad range of GM vehicles, offering a straightforward upgrade path for swap projects aiming for improved oil management and track-day reliability.
Buying Guide: Key Purchase Considerations
- Oil Pan Capacity and Clearance: Higher capacities reduce oil boil at boost but may interfere with cross members or steering components. Low-profile pans often fit tight engine bays but may limit oil capacity.
- Drain and Return Fittings: Turbo drain adaptors typically use -10AN or similar fittings. Confirm compatibility with your oil pump, pan, and turbo kit to avoid leaks or clearance issues.
- Material and Build Quality: Billet aluminum and high-grade aluminum options offer strength and heat dissipation, but may be pricier. Look for corrosion resistance and finish quality.
- Windage Tray and baffles: A full-length windage tray helps control oil splash and aeration at high RPMs. Some pans come with integral baffles to reduce oil starvation risk during hard cornering or abrupt deceleration/acceleration.
- Compatibility with Vehicle and Engine: Ensure the selection matches GM body styles (A-, G-, F-body) and engine generation (Gen III vs Gen IV). Also verify front-accessories and timing cover clearance if you’re using a turbo drain setup.
- Gasket and Hardware Inclusions: Some kits include gaskets, pickup tubes, and mounting hardware. If not included, factor in additional parts and torque specs in the install plan.
- Professional Installation vs DIY: Turbo drain routing and swap-specific pans may require precise alignment and custom line routing. Consider consulting a professional if you’re not experienced with high-boost LS swaps.
When evaluating options, prioritize fitment with your chosen body style, engine generation, and turbo drain routing. A well-chosen oil pan and drain system can contribute to reliable oil control under boost and extended engine life during performance driving.
