When working with small engines, extending or adapting the crankshaft area can help you fit larger pulleys, gearboxes, or adapters without replacing the entire motor. This guide highlights five practical crankshaft extension options that are commonly used in light industrial, lawn and garden, and automotive aftermarket applications. Each product is selected for compatibility with common engine configurations and straightforward installation. The following sections summarize key features to help you compare quickly and choose the right extension for your project.
| Product | Brand | Key Benefit | URL |
|---|---|---|---|
| ICT Billet Wire Extension LS Gen 3 White 3-Wire CKP | ICT Billet | OEM-grade extension with matched wire colors | Link |
| ICT Billet Wire Extension LS Gen 4 Grey 3-Wire CKP | ICT Billet | Gen 4 design with OEM tooling consistency | Link |
| 3mirrors Engine Pulley Crank Shaft Sleeve Adapter | 3mirrors | 1 inch to 1 1/8 inch shaft capacity with extension | Link |
| MotorbyMotor Window Crank Shaft Extension | MotorbyMotor | Wide GM-era compatibility and shaft-diameter fit | Link |
| Ciuouient 1″ to 1 1/8″ Shaft Sleeve Adapter | Ciuouient | Gas engine compatibility with extended shaft diameter | Link |
Note: The products listed here are common aftermarket sleeves and extensions used to adapt crankshaft diameters or extend shaft lengths. Always verify compatibility with your engine model, pulley sizes, belts, and any mounting constraints before purchase.
ICT Billet Wire Extension LS Gen 3 White
This 3-wire crankshaft position sensor (CKP) wire extension from ICT Billet is designed for LS Gen 3 applications. It is assembled with OEM tooling, including the connector, lock, seals, and terminals, and uses OEM harness wire colors for a seamless fit with the factory harness. Manufactured in Wichita, Kansas, the extension uses USA-made TXL wire to preserve electrical performance. It helps extend the length of your factory harness, enabling easier routing and installation in tight engine bays while maintaining OEM reliability.

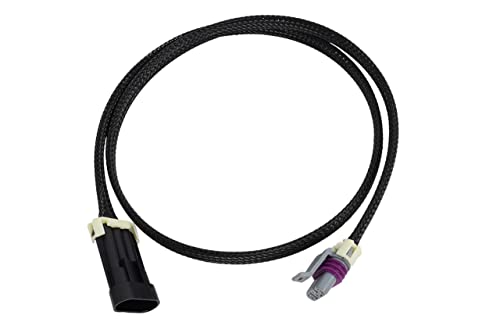

ICT Billet Wire Extension LS Gen 4 Grey
This Gen 4 wire extension from ICT Billet mirrors the Gen 3 design with updated Grey color coding and 3-wire CKP compatibility. It preserves OEM-grade assembly, including the connector, lock, seals, and terminals, and continues to use OEM harness wire colors for a precise match. The product is manufactured in Wichita, Kansas using USA-made TXL wire, and it extends the length of the factory harness for easier routing and serviceability on modern LS engines.
3mirrors Engine Pulley Crank Shaft Sleeve Adapter
This stainless steel 304 shaft adapter converts a crankshaft from 1 inch to 1 1/8 inch and adds about 1.5 inches of length. It is designed for gas engine cranks to accommodate larger pulleys and gear boxes, enabling adjustments in speed or torque without needing a full engine replacement. The adapter expands compatibility with various pulleys and belts, reducing downtime and preserving existing components while meeting power and speed requirements.

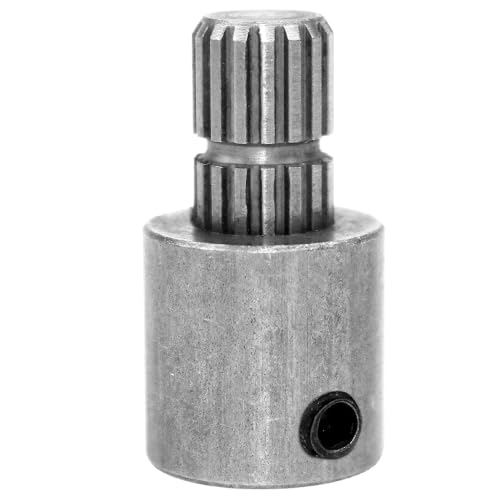

MotorbyMotor Window Shaft Extension
This universal window crank shaft extension from MotorbyMotor targets GM-era applications and a wide range of vehicles. It fits most 1950–1990 GM products and select imports, featuring a 1/2″ diameter splined shaft compatible with various regulators and latches. The extension broadens compatibility with door components, enabling easier retrofits or repairs when matching the shaft to a new mechanism or motor setup is required.
Ciuouient 1″ to 1 1/8″ Shaft Sleeve Adapter
This Ciuouient sleeve converts a 1″ crankshaft to 1 1/8″ diameter and extends the shaft by about 1.5″. It is designed for gas engines and is compatible with models such as Pulsar Lawn PTG1220D5 and Sun Joe MJ408E, among others. The kit includes key stocks to compensate sleeve thickness, a center through hole, and mounting screws. It enables reuse of existing pulleys or gearboxes with a larger crank diameter, improving versatility on newer engines without extensive drilling or replacement.
Buying Guide: Key Considerations for Crankshaft Extensions
- Engine compatibility: Verify the extension’s compatibility with your engine family, model year, and shaft diameter. Some products target LS engines, while others support generic gas engines or GM-era components.
- Diameter and length: Consider whether you need a simple length extension or a diameter upgrade (1″ to 1 1/8″ is common). Ensure the extended shaft will accommodate pulleys, belts, and gearboxes without interference.
- Material and finish: Stainless steel or high-quality alloys offer durability and corrosion resistance. Ensure the finish matches or tolerances align with surrounding components.
- Assembly and fit: OEM tooling and color-matched wiring simplify installation and reduce the risk of misalignment. For adapters, proper keyways and set screws are essential for secure mounting.
- Installation impact: Assess whether installation requires machining, additional brackets, or changes to mounting points. Some extensions are plug-and-play, others require hardware changes.
- Application scope: Some products are designed for pulleys and belts in industrial or lawn equipment, while others address window regulators or sensor harnesses. Choose based on your specific project needs.
- Reliability and warranty: Look for manufacturers that offer clear documentation, installation guidelines, and warranties. OEM-grade components tend to offer better long-term reliability.
- Cost vs benefit: Weigh the benefit of extending or adapting versus replacing the entire engine or pulley system. Extensions can save time and expense in many repair scenarios.
Across these options, users should balance compatibility with ease of installation, ensuring that the selected crankshaft extension aligns with shaft size, pulley clearance, and the overall belt drive configuration. This approach helps maintain engine performance while enabling the needed adaptation for specialized applications.
